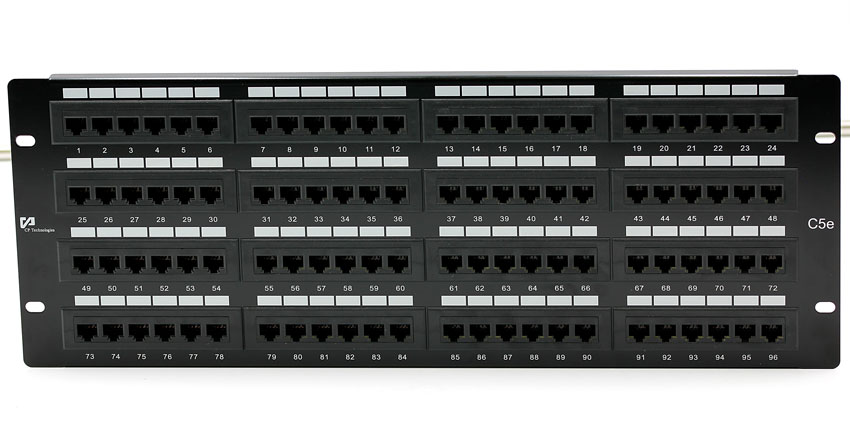

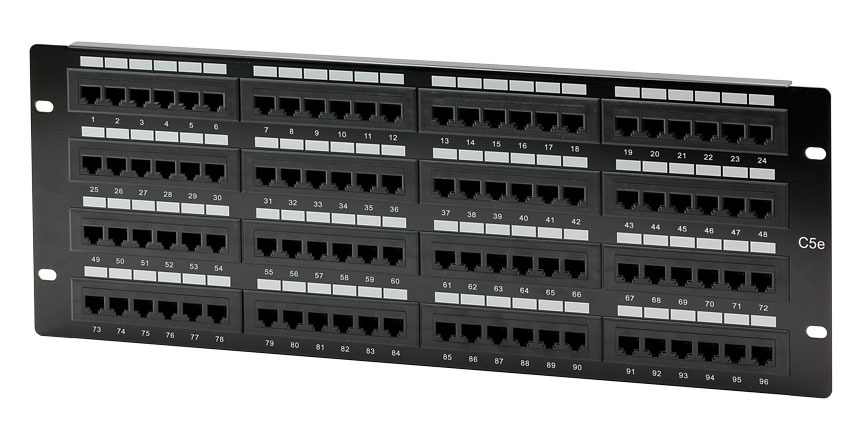

GT-C5EPPR4U-96

CAT5E Patch Panel Punch Down RJ-45 / 110 T568A/B Rack Mount 4U- 96 Port

Overview
Specifications
Resources
  • 4U Rack Mountable
  • RJ45 Plug and Play Connections
  • Terminates 4-pair, 22–26 AWG, Twisted Pair with T568A/B Schemes
  • Mounts to standard 19” EIA Rack

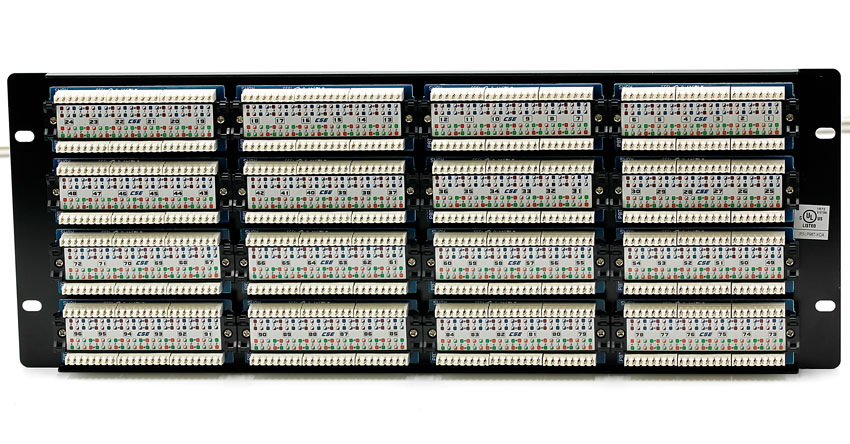

The GigaTech Products GT-C5EPPR4U-96 provides a rugged 4U rack mount solution for high density copper termination. This panel has a 110 punch down termination on the back of the panel for connection to structured cabling. Labels are provided for quick port identification and efficient system management. As with all GigaTech products, these enclosures are tested for quality and reliability and are covered by our standard Lifetime Warranty.

Product Type CAT5E Copper Patch PanelRack Spaces4U
Ports110 / 96x RJ45LoadedYes
MaterialSPCC SteelMount TypeRack Mount
InstallationEIA 19" Rack Rails Shielded No
Dimensions464.8 x 176.5 x 28.9mm ApplicationCopper Cable Management
