NVIDIA Mellanox Compatible Central

Connect, Deliver, and Scale Your Network with GigaTech Transceiver, DAC, and AOC Solutions – From 10G to 800G

GigaTech Products is your trusted provider of high-performance networking solutions. We offer a comprehensive range of NVIDIA Mellanox compatible Transceivers, Active Optical Cables (AOC), and Direct Attach Cables (DAC) in all form factors to support your network’s growing bandwidth demands.

NVIDIA Mellanox Systems

GigaTech Products is steadfast in its dedication to delivering top-notch compatibles tailored for all NVIDIA Mellanox systems. With a meticulous focus on quality assurance, each component undergoes rigorous testing to ensure seamless integration and 100% compatibility. Our commitment to excellence ensures that customers can rely on GigaTech for dependable solutions that meet the demanding standards of NVIDIA Mellanox systems.

Next Gen NVIDIA Platform Compatibility

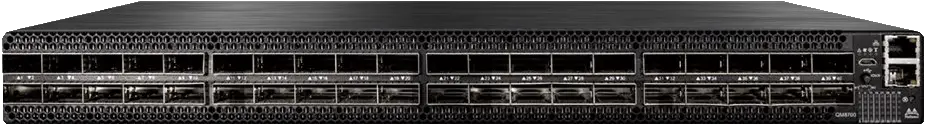

QuantumX-800

Supporting NVIDIA’s advanced 400Gb/s interconnect technology, NVIDIA Quantum-2 is a high-speed, extremely low-latency, and scalable networking solution.

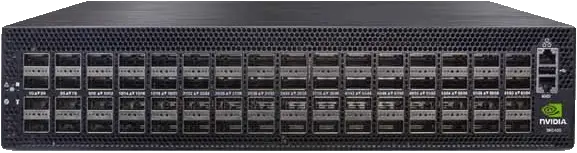

Spectrum-4 Switches

The NVIDIA Spectrum Ethernet switch family includes a comprehensive switch and software portfolio spanning 1GbE to 800GbE.

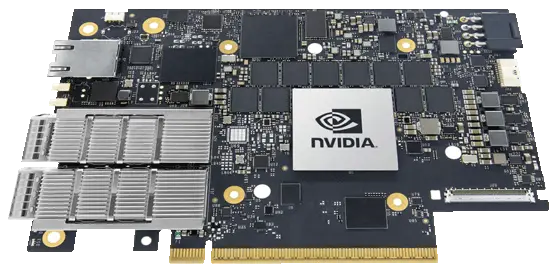

BlueField-3 SuperNIC

With 400Gb/s Ethernet or NDR 400Gb/s InfiniBand network connectivity, BlueField-3 DPU offloads networking, storage, security, and management functions

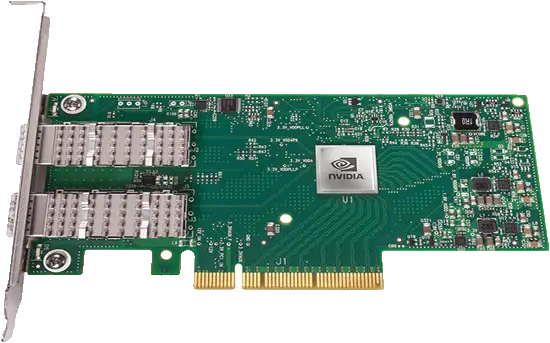

ConnectX NIC

10/25/40/50/100/200 and 400G Ethernet Network Adapters

Supported Ethernet Speeds

10G

25G

50G

100G

200G

400G

800G

Supported InfiniBand Speeds

Theoretical effective
throughput (Gb/s)

FDR

EDR

HDR

NDR

1X Link

13.64

25

50

100

4X Link

54.54

100

200

400

8X Link

109.08​

200

400

800

12X Link

163.64

300

600

1200

Product Offerings

Transceivers

GigaTech Products provides high quality transceivers for NVIDIA Mellanox Ethernet & InfiniBand Systems. These transceivers are specifically coded to be 100% compatible with the original NVIDIA Mellanox part. Each product is subject to in depth qualification and testing to ensure that it will perform to the demands of rigorous technology environments. All items are manufactured using the highest quality components and covered by a Lifetime Warranty.

NVIDIA Mellanox Compatible Transceivers

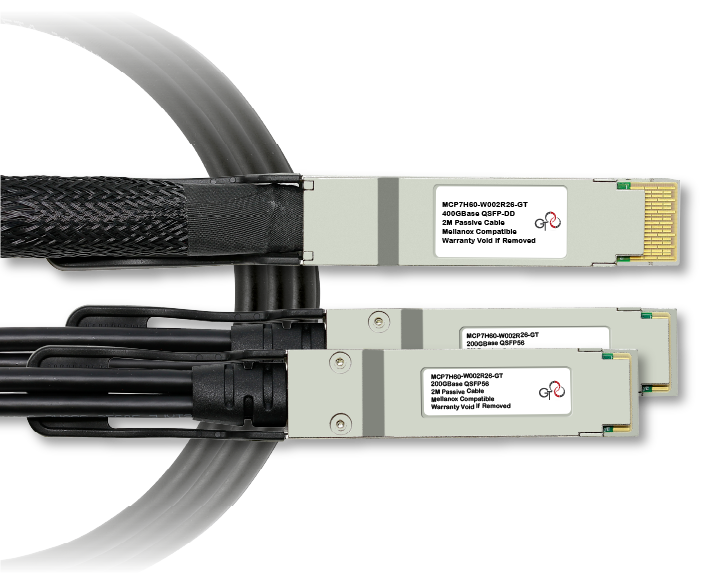

Direct Attach Copper Cables

GigaTech Products provides high quality direct attach copper cables for NVIDIA Mellanox Ethernet & InfiniBand Systems. These factory terminated cabling solutions are specifically coded to be 100% compatible with the original NVIDIA Mellanox part. Each product is subject to in depth qualification and testing to ensure that it will perform to the demands of rigorous technology environments. All items are manufactured using the highest quality components and covered by a Lifetime Warranty.

NVIDIA Mellanox Compatible DAC

Active Optic Cables

GigaTech Products provides high quality active optic fiber cables for NVIDIA Mellanox Ethernet & InfiniBand Systems. These active optic cables are factory terminated for ease of use and maintenance.  Specifically coded to be 100% compatible with the original NVIDIA Mellanox part they offer a cost effective solution for your network infrastructure. Each product is subject to in depth qualification and testing to ensure that it will perform to the demands of rigorous technology environments. All items are manufactured using the highest quality components and covered by a Lifetime Warranty.

NVIDIA Mellanox Compatible AOC

Applications

Ethernet Applications

Ethernet LAN Topology

Ethernet Speed Chart

InfiniBand Applications

Dual Star InfiniBand Topology

InfiniBand is a high-performance, multi-purpose networking technology primarily used in data centers and high-performance computing (HPC) environments.

Usage

Used in supercomputers, data centers, and environments where low latency and high data throughput are critical.

Speed

InfiniBand supports high data rates, with standard speeds ranging from 2.5 Gbps to 800 Gbps.

Advanced Features

InfiniBand includes advanced features such as quality of service and failover, and it can handle both storage and network traffic

Features and Advantages

Superior performance

Superior performance: Most of the world’s fastest commercially available supercomputers leverage the InfiniBand interconnect.

Low-latency

InfiniBand’s ultra-low latencies, with measured delays of 1µs end to end, greatly accelerate many data center and high performance computing (HPC) applications.

High-efficiency

InfiniBand provides direct support of advanced reliable transport protocols such as Remote Direct Memory Access (RDMA) to enhance the efficiency of customer workload processing.

Cost effectiveness

InfiniBand Host Channel Adapters and switches are very competitively priced and create a compelling price/performance advantage over alternative technologies.

Fabric consolidation and low energy usage

InfiniBand consolidates networking, clustering, and storage data over a single fabric lowering the overall power, real estate and management overhead.

Reliable, stable connections

InfiniBand meets the mission-critical needs of today’s enterprise by enabling fully redundant and lossless I/O fabrics, with automatic path failover and link layer multi-pathing abilities to meet the highest levels of availability.

GPUDirect RDMA

GPUDirect technology from NVIDIA facilitates direct data exchange between multiple GPUs, third-party network adapters, solid-state drives, and other PCIe devices. GPUDirect allows for peer-to-peer transfers between GPUs and remote direct memory access (RDMA), ideal for High-Performance Computing (HPC) and Machine Learning (ML) applications. P2P transfers enable data exchanges between two GPUs on a host without relying on host memory, easing the burden on the host CPU, while multi-host RDMA allows a Host Channel Adapter (HCA) to directly read and write GPU memory data buffers and transfer the data through a remote HCA to a GPU on another host, bypassing host memory and reducing host CPU involvement. Both approaches exhibit significant performance improvements for GPU accelerated HPC and ML/DL applications.

No GPUDirect P2P

Without GPUDirect P2P, the host CPU must transfer data from one GPU’s memory, to host memory, and then into the second GPU’s memory.

GPUDirect P2P

With GPUDirect P2P, the data can be transferred directly without host CPU involvement and without data being transferred to host memory.

The Benefits

OF GIGATECH OPTICS

  • Unwavering Quality

    We source our transceivers from industry-leading manufacturers, ensuring the highest quality and reliability.

  • Dedicated Support

    Our team of networking experts is readily available to assist you with product selection, configuration, and any technical inquiries you may have.

  • Competitive Pricing

    We offer exceptional value for your investment, providing high-performance transceivers at competitive prices.

  • Fast Delivery

    We maintain a well-stocked inventory and ensure prompt delivery to minimize downtime during deployments.

Never Sourced. Never Recycled.

All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,

Rigorous Testing & Standards Compliance

The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.

Explore our extensive catalog of NVIDIA Mellanox compatible AOCs and DACs to find the perfect solution for your network requirements. Download detailed datasheets for each product variation and get a clear picture of features and specifications.

For personalized assistance or a free quote, contact our sales team today!
