QSFP56
Quad 50 Gigabits Small Form-factor Pluggable
QSFP56 (Quad Small Form-factor Pluggable 56) is an advanced optical transceiver module designed for high-speed data transmission in networking and data center applications. It represents the evolution of QSFP28, offering increased data rates of up to 200 Gbps per channel or 800 Gbps aggregate throughput with four channels. QSFP56 modules support various communication protocols such as Ethernet, InfiniBand, and Fibre Channel, making them versatile for diverse networking needs. With its compact form factor, hot-pluggable design, and advanced thermal management features, QSFP56 facilitates high-density and reliable connectivity solutions for modern high-performance computing environments.
QSFP56 Media Types

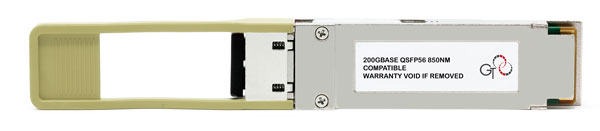

200GBase-SR4
The QSFP56 SR4 is a short-range transceiver for use over parallel multimode fiber. Utilizing 4 optical pairs of 855nm/908nm, each optical channel operates at 50Gb/s PAM4, resulting in a total of 8 fiber (4x Tx and 4x Rx). This transceiver can be used to connect to single 200G, Dual 100G, or 4x SFP 25G/50G applications.
| Data Rate | Wavelength | Max Distance | Connector | Modulation |
|---|---|---|---|---|
|
200Gbps |
850nm |
100m |
MTP/MPO-12 MMF UPC |
4x 50G PAM4 |
Select Breakout Options Below
QSFP56 SR
1x MTP/MPO-12 200G Link
QSFP56 SR
Direct Connection between QSFP56 SR Transceivers for 200G Connectivity
QSFP56 SR
1x MTP/MPO-12 100G Link
QSFP28 SR
Direct Connection between QSFP56 SR and QSFP28 Transceivers for 100G Connectivity
QSFP56 SR
MTP/MPO-12 200G to 2x 100G MTP/MPO-12 Breakout
QSFP56 SR2
The QSFP56 SR Transceiver Supports 2x 100G-SR2 Breakout Capability
200G SR
MPO to LC Breakout 4x 50G Link
50G SFP56
The GigaTech Products QSFP56 SR transceiver will operate with 4x SFP56 SR in a 4x 50G breakout mode.
200G SR
MPO to LC Breakout 4x 25G Link
25G SFP28 SR
The GigaTech Products QSFP56 SR transceiver will operate with 4x SFP28 SR in a 4x 25G breakout mode.

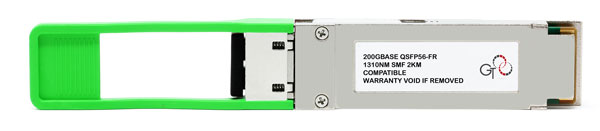

200GBase-FR4
The QSFP56 FR4 transceiver is used for transmission up to 2km over duplex singlemode fiber. Utilizing 4 CWDM pairs, each optical channel operates at 50Gb/s PAM4, resulting in a total of 2 fiber (1x Tx and 1x Rx). This transceiver can only be used to connect to a single 200G application.
| Data Rate | Wavelength | Max Distance | Connector | Modulation |
|---|---|---|---|---|
|
200Gbps |
1310nm |
2km |
LC Duplex SMF |
4x 50G PAM4 |
Compatible Manufacturers
GigaTech Products has been a leading manufacturer of compatible transceivers and cables for over a decade, bringing customers affordable alternatives to Cisco, Juniper, Brocade, Dell, and HP original items. With the ability to custom code transceivers and direct attach network cables, GigaTech can provide compatible alternatives for most lesser-known brands, while ensuring 100% compatibility
Optical Transceiver Standards & Compliance
Never Sourced. Never Recycled.
All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
