QSFP-DD

Quad Small Form Factor Pluggable Double Density

QSFP-DD is a new module and cage/connector system similar to current QSFP, but with an additional row of contacts providing for an eight lane electrical interface. The data rate of each channel can reach 25Gb/s through NRZ modulation technology, realizing 200G network transmission. Also, the data rate of each channel can reach 50Gb/s by the PAM4 modulation technology, achieving 400G network transmission, which is suitable for high-performance computing data center and cloud network. These modules utilize MTP and LC connectors and are compliant with RoHS, IEEE, and QSFP-DD MSA standards.

QSFP-DD Media Types

400GBase
200GBase

400GBase-SR8

The QSFP-DD SR8 is a short-range transceiver for use over parallel multimode fiber. Utilizing 8 optical pairs of 850nm, each optical pair operates at 50Gb/s PAM4, resulting in a total of 16 fibers (8x Tx and 8x Rx). This transceiver can be used to connect to single 400G, 2x 200G, 4x 100G, or 8x 50G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	850nm	100m	MTP/MPO-16 MMF APC	8x 50G PAM4

Select Breakout Options Below

1x QSFP-DD 400G
2x QSFP56 200G
2x QSFP28 100G
8x SFP56 50G
8x SFP28 25G

QSFP-DD SR8

MTP/MPO-16 400G Link

QSFP-DD SR8

Direct Connection between QSFP-DD SR8 Transceivers for 400G Connectivity

QSFP-DD SR8

MTP/MPO-16 400G to 2x 200G MTP-12 Breakout

QSFP56 SR4

The QSFP-DD SR8 Transceiver Supports 2x 200G-SR4 Breakout Capability

QSFP-DD SR8

MTP/MPO-16 200G to 2x 100G MTP-12 Breakout

QSFP28 SR4

The QSFP-DD SR8 Transceiver Supports 2x 100G-SR4 Breakout Capability

QSFP-DD SR8

MTP/MPO-16 400G to 8x 50G LC Duplex Breakout

50G SFP56

The QSFP-DD SR8 Transceiver Supports up to 8x 50G-SR Breakout Capability

QSFP-DD SR8

MTP/MPO-16 200G to 8x 25G LC Duplex Breakout

25G SFP28

The QSFP-DD SR8 Transceiver Supports up to 8x 25G-SR Breakout Capability

400GBase-SR4.2

The QSFP-DD SR4.2 is a short-range transceiver for use over parallel multimode fiber. Utilizing 4 optical pairs of 855nm/908nm, each optical channel operates at 50Gb/s PAM4, resulting in a total of 8 fiber (4x Tx and 4x Rx). This transceiver can be used to connect to single 400G or 4x 100G 1.2 applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	855/908nm	150m	MTP/MPO-12 MMF UPC	8x 50G PAM4

Select Breakout Options Below

1x QSFP-DD 400G
4x QSFP28 100G SR BD

400G SR BD

MTP/MPO 400G Link

400G SR BD

The GigaTech Products QSFP-DD SR BD transceiver will operate with a QSFP-DD SR BD for 400G connectivity.

400G SR BD

MPO to LC Breakout 4x 100G Link

100G SR BD

The GigaTech Products QSFP-DD SR BD transceiver will operate with 4x QSFP28 SR BD in a 4x 100G breakout mode.

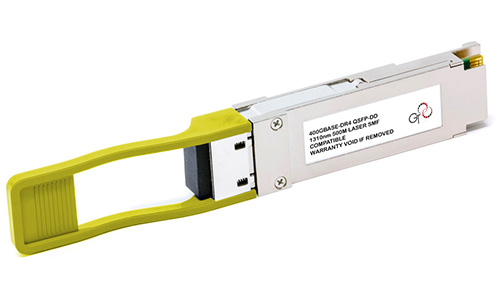

400GBase-DR4

The QSFP-DD DR4 transceiver is used for transmission up to 500m over parallel singlemode fiber. Utilizing 4 optical pairs of 1310nm, each optical channel operates at 50Gb/s PAM4, resulting in a total of 8 fiber (4x Tx and 4x Rx). This transceiver can be used to connect to single 400G or 4x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	1310nm	500m	MTP/MPO-12 SMF APC	8x 50G PAM4

Select Breakout Options Below

1x QSFP-DD 400G
4x QSFP28 100G

QSFP-DD DR4

MTP/MPO-12 APC 400G Link

QSFP-DD DR4

Direct Connection between QSFP-DD DR4 Transceivers for 400G Connectivity

QSFP-DD DR4

MTP/MPO-12 400G to 4x 100G LC Duplex Breakout

100G QSFP28

The QSFP-DD DR4 can breakout to 4x 100GBASE-DR, 100G-FR, & 100G-LR QSFP28 up to 500m

4x 100GBase-FR (XDR4)

The QSFP-DD FR transceiver is used for transmission up to 2km over parallel singlemode fiber. Utilizing 4 optical pairs of 1310nm, each optical channel operates at 50Gb/s PAM4, resulting in a total of 8 fiber (4x Tx and 4x Rx). This transceiver can be used to connect to single 400G or 4x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	1310nm	2km	MTP/MPO-12 SMF APC	8x 50G PAM4

Select Breakout Options Below

1x QSFP-DD 400G
4x QSFP28 100G

QSFP-DD FR

MTP/MPO-12 SMF APC 400G Link

QSFP-DD FR

Direct Connection between QSFP-DD FR Transceivers for 400G Connectivity

QSFP-DD FR

MTP/MPO-12 SMF APC 400G to 4x 100G LC Duplex Breakout

100G QSFP28

The QSFP-DD FR can breakout to 4x 100GBASE-FR (up to 2KM), 100G-DR (up to 500M), & 100G-LR (up to 2KM) QSFP28

4x 100GBase-LR (PLR4)

The QSFP-DD LR transceiver is used for transmission up to 10km over parallel singlemode fiber. Utilizing 4 optical pairs of 1310nm, each optical channel operates at 50Gb/s PAM4, resulting in a total of 8 fiber (4x Tx and 4x Rx). This transceiver can be used to connect to single 400G or 4x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	1310nm	10km	MTP/MPO-12 SMF APC	8x 50G PAM4

Select Breakout Options Below

1x QSFP-DD 400G
4x QSFP28 100G

QSFP-DD LR

MTP/MPO-12 SMF APC 400G Link

QSFP-DD LR

Direct Connection between QSFP-DD LR Transceivers for 400G Connectivity

QSFP-DD LR

MTP/MPO-12 SMF APC 400G to 4x 100G LC Duplex Breakout

100G QSFP28

The QSFP-DD LR can breakout to 4x 100G-LR (up to 10KM), 100G-DR (up to 500M), & 100G-FR (up to 2KM) QSFP28

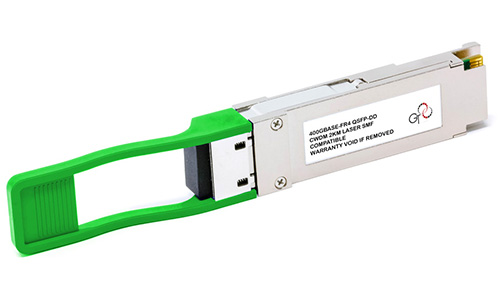

400GBase-FR4

The QSFP-DD FR4 transceiver is used for transmission up to 2km over duplex singlemode fiber. Utilizing 4 CWDM pairs, each optical channel operates at 50Gb/s PAM4, resulting in a total of 2 fiber (1x Tx and 1x Rx). This transceiver can only be used to connect to a single 400G application.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	1271 / 1291 / 1311 / 1311nm	2km	LC Duplex	8x 50G PAM4

QSFP-DD FR4

LC Duplex 400G Link

QSFP-DD FR4

Direct Connection between QSFP-DD FR4 Transceivers for 400G Connectivity

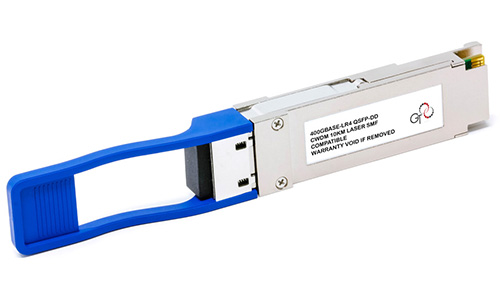

400GBase-LR4

The QSFP-DD LR4 transceiver is used for transmission up to 10km over duplex singlemode fiber. Utilizing 4 CWDM pairs, each optical channel operates at 50Gb/s PAM4, resulting in a total of 2 fiber (1x Tx and 1x Rx). This transceiver can only be used to connect to a single 400G application.

Data Rate	Wavelength	Max Distance	Connector	Modulation
400Gbps	1271 / 1291 / 1311 / 1311nm	10km	LC Duplex	8x 50G PAM4

QSFP-DD LR4

LC Duplex 400G Link

QSFP-DD LR4

Direct Connection between QSFP-DD LR4 Transceivers for 400G Connectivity

200GBase-2SR4

The QSFP-DD 2SR4 is a short-range transceiver for use over parallel multimode fiber. Utilizing 8 optical pairs of 850nm, each optical pair operates at 25Gb/s NRZ, resulting in a total of 16 fibers (8x Tx and 8x Rx) used with an MPO-24 connector. This transceiver can be used to connect to single 200G, or 2x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
200Gbps	850nm	100m	MTP/MPO-24 MMF APC	8x 25G NRZ

Select Breakout Options Below

1x QSFP-DD 200G
2x QSFP28 100G

QSFP-DD 2SR4

MTP/MPO-24 MMF UPC 200G Link

QSFP-DD 2SR4

Direct Connection between QSFP-DD 2SR4 Transceivers for 200G Connectivity

QSFP-DD 2SR4

MTP/MPO-24 MMF UPC 200G to 2x 100G MTP-12 Breakout

QSFP28 SR4

The QSFP-DD 2SR4 Transceiver Supports 2x 100G-SR4 Breakout Capability

200GBase-2CWD4

The QSFP-DD 2CWD4 transceiver is used for transmission up to 2km over dual duplex singlemode fiber. Utilizing dual 4 CWDM pairs, each optical channel operates at 25Gb/s NRZ, resulting in a total of 2 fiber (1x Tx and 1x Rx) per CS duplex connector. This transceiver can be used to connect to a single 200G, or 2x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
200Gbps	1271nm, 1291nm, 1311nm, 1311nm	2KM	Dual Duplex CS SMF PC/UPC	8x 25G NRZ

Select Breakout Options Below

1x QSFP-DD 200G
2x QSFP28 100G

QSFP-DD 2CWD4

Dual Duplex CS SMF PC/UPC 200G Link

QSFP-DD 2CWD4

Direct Connection between QSFP-DD 2CWD4 Transceivers for 200G Connectivity

QSFP-DD 2CWD4

Dual Duplex CS SMF PC/UPC to 2x LC SM Duplex

QSFP28 CWDM4

The QSFP-DD 2CWD4 Transceiver Supports 2x 100G-CWDM4 Breakout Capability

200GBase-2LR4

The QSFP-DD 2LR4 transceiver is used for transmission up to 10km over dual duplex singlemode fiber. Utilizing dual 4 LWDM pairs, each optical channel operates at 25Gb/s NRZ, resulting in a total of 2 fiber (1x Tx and 1x Rx) per CS duplex connector. This transceiver can be used to connect to a single 200G, or 2x 100G applications.

Data Rate	Wavelength	Max Distance	Connector	Modulation
200Gbps	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	10KM	Dual Duplex CS SMF PC/UPC	8x 25G NRZ

Select Breakout Options Below

1x QSFP-DD 200G
2x QSFP28 100G

QSFP-DD 2LR4

Dual Duplex CS SMF PC/UPC 200G Link

QSFP-DD 2LR4

Direct Connection between QSFP-DD 2LR4 Transceivers for 200G Connectivity

QSFP-DD 2LR4

Dual Duplex CS SMF PC/UPC to 2x LC SM Duplex

QSFP28 LR4

The QSFP-DD 2LR4 Transceiver Supports 2x 100G-LR4 Breakout Capability
