SFP
Small Form Factor Pluggable Ethernet Transceivers
SFP optical transceivers are hot-pluggable modules used for 1Gb and 100Mb data transmission. The term “SFP” stands for Small Form Factor Pluggable, and uses single transmit and receive signals. These modules utilize the LC connector and are compliant with RoHS, IEEE, and SFP MSA standards.
SFP Media Types
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 850nm VCSEL laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 300M over 62.5/125 MMF
- Up to 550M over 50/125 MMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Up to 10km over 9/125 SMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825

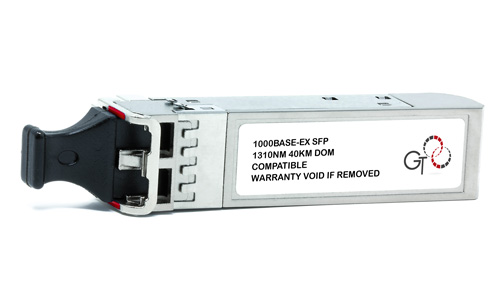

Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Simplex LC Connectors
- Up to 40km over 9/125 SMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1550nm DFB laser transmitter
- APD Receiver
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 80km over 9/125 SMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1550nm DFB laser transmitter
- APD Receiver
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 120km over 9/125 SMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1550nm DFB laser transmitter
- APD Receiver
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 160km over 9/125 SMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825

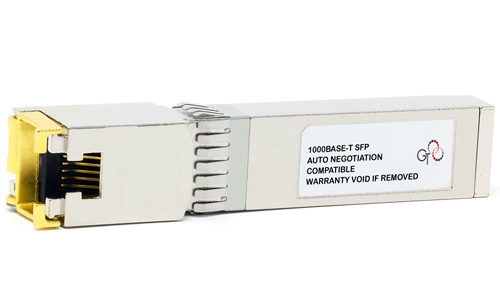

Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- Support 1000Base-T full duplex default
- Support 10/100/1000Base-T operation in host with SGMII
- RJ-45 Connectors
- Auto-sense MDI/MDIX
- Up to 100M over copper wire cabling
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z, IEEE 802.3u, IEEE802.3ab
- SFP MSA SFF-8472
- RoHS
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- Simplex LC Connectors
- Built in Digital Diagnostics
- Single power supply 3.3V
Configuration Options
- 10km - 1310nm Tx / 1490nm Rx & 1490nm Tx / 1310nm Rx
- 10km - 1310nm Tx / 1550nm Rx & 1550nm Tx / 1310nm Rx
- 20km - 1310nm Tx / 1490nm Rx & 1490nm Tx / 1310nm Rx
- 20km - 1310nm Tx / 1550nm Rx & 1550nm Tx / 1310nm Rx
- 40km - 1310nm Tx / 1490nm Rx & 1490nm Tx / 1310nm Rx
- 40km - 1310nm Tx / 1550nm Rx & 1550nm Tx / 1310nm Rx
- 60km - 1310nm Tx / 1490nm Rx & 1490nm Tx / 1310nm Rx
- 60km - 1310nm Tx / 1550nm Rx & 1550nm Tx / 1310nm Rx
- 80km - 1490nm Tx / 1550nm Rx & 1550nm Tx / 1490nm Rx
- 120km - 1490nm Tx / 1550nm Rx & 1550nm Tx / 1490nm Rx
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- Duplex LC Connectors
- Built in Digital Diagnostics
- Single power supply 3.3V
Configuration Options
- 10km – 1270nm to 1610nm
- 40km – 1270nm to 1610nm
- 80km – 1470nm to 1610nm
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 125MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 2km over MMF
- Single power supply 3.3V
Applications
- 125MBd Fast Ethernet
Compliance
- 100BASE-FX
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 125MBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm FP laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 15km over 9/125 SMF
- Single power supply 3.3V
Applications
- 125MBd Fast Ethernet
Compliance
- 100BASE-LX
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 125MBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm FP laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 40over 9/125 SMF
- Single power supply 3.3V
Applications
- 125MBd Fast Ethernet
Compliance
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 125MBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1550nm SFP laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 80KM over 9/125 SMF
- Single power supply 3.3V
Applications
- 125MBd Fast Ethernet
Compliance
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 125MBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1550nm SFP laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 120KM over 9/125 SMF
- Single power supply 3.3V
Applications
- 125MBd Fast Ethernet
Compliance
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825

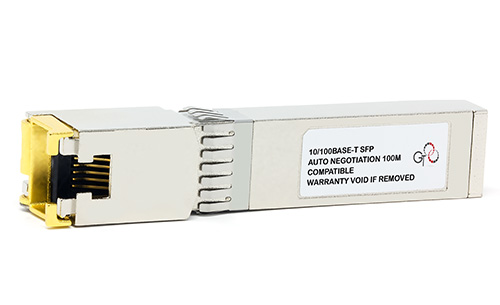

Features
- Up to 100MBd bi-directional data links
- Hot-pluggable SFP footprint
- Support 10/100Base-T full duplex default
- RJ-45 Connectors
- Auto-sense MDI/MDIX
- Up to 100M over copper wire cabling
- Single power supply 3.3V
Applications
- 100MBd Fast Ethernet
Compliance
- IEEE 802.3
- SFP MSA SFF-8472
- RoHS
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Features
- Up to 2.125GBd bi-directional data links
- Hot-pluggable SFP footprint
- 850nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- 550M over OM2 MMF, 300M over OM1 MMF
- Single power supply 3.3V
Applications
- 1.25GBd Gigabit Ethernet
- 1.062 GBd Fiber Channel
- 2.125 GBd Fiber Channel
Compliance
- IEEE 802.3z Gigabit Ethernet
- 1X and 2X Fiber Channel
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.125GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 10km over 9/125 SMF
- Single power supply 3.3V
Applications
- 1.25GBd Gigabit Ethernet
- 1.062 GBd Fiber Channel
- 2.125 GBd Fiber Channel
Compliance
- IEEE 802.3z Gigabit Ethernet
- 1X and 2X Fiber Channel
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 4.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 850nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- 550M over OM2 MMF, 300M over OM1 MMF
- Single power supply 3.3V
Applications
- 1.063/2.125/4.25 Gb/s Fibre Channel
Compliance
- FC-PI-2
- IEEE Std 802.3
- RoHS
- Class 1 laser product EN 60825

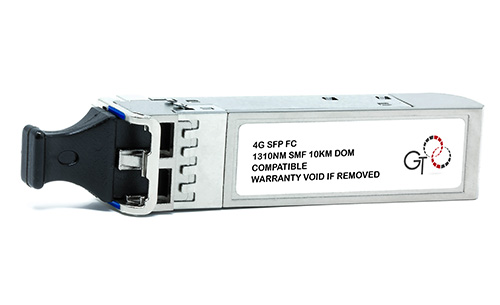

Features
- Up to 4.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 10KM over SMF
- Single power supply 3.3V
Applications
- 1.063/2.125/4.25 Gb/s Fibre Channel
Compliance
- FC-PI-2
- IEEE Std 802.3
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 4.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 30KM over SMF
- Single power supply 3.3V
Applications
- 1.063/2.125/4.25 Gb/s Fibre Channel
Compliance
- FC-PI-2
- IEEE Std 802.3
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 155MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 2km over MMF
- Single power supply 3.3V
Applications
- SONET OC-3 SR-0/SDH STM S-1
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 155MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 2km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-3 SR/SDH STM S-1.1
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 155MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 15km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-3 IR1/SDH STM S-1.1
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 155MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 40km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-3 LR1/SDH STM S-1.1
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 155MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1550nm LED transmitter
- Duplex LC Connectors
- Up to 80km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-3 LR2/SDH STM S-1.1
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 622MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 2km over MMF
- Single power supply 3.3V
Applications
- SONET OC-12 SR-0/SDH STM S-4
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 622MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 2km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-12 SR/SDH STM S-4
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 622MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 15km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-12 IR1/SDH STM S-4
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 622MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm LED transmitter
- Duplex LC Connectors
- Up to 40km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-12 LR1/SDH STM S-4
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 622MBd bi-directional data links
- Hot-pluggable SFP footprint
- 1550nm LED transmitter
- Duplex LC Connectors
- Up to 80km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-12 LR2/SDH STM S-4
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-3/STM-1
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.67GBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm FB laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 2km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-48 SR/SDH STM I-16
- SONET OC-12 SR/SDH STM I-4
- SONET OC3 SR/SDH STM I-1
- 25GBd Gigabit Ethernet
- 125GBd / 1.08GBd Fiber Channel
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.67GBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm DFB laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 15km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-48 IR-1/SDH STM S-16.1
- SONET OC-12 IR-1/SDH STM S-4.1
- SONET OC3 IR-1/SDH STM S-1.1
- 25GBd Gigabit Ethernet
- 125GBd / 1.08GBd Fiber Channel
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.67GBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm DFB laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 15km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-48 IR-1/SDH STM S-16.1
- SONET OC-12 IR-1/SDH STM S-4.1
- SONET OC3 IR-1/SDH STM S-1.1
- 25GBd Gigabit Ethernet
- 125GBd / 1.08GBd Fiber Channel
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.67GBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1310nm DFB laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 40km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-48 LR-1/SDH STM L-16.1
- SONET OC-12 LR-1/SDH STM L-4.1
- SONET OC3 LR-1/SDH STM L-1.1
- 25GBd Gigabit Ethernet
- 125GBd / 1.08GBd Fiber Channel
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Features
- Up to 2.67GBd bi-directional data links
- Hot-pluggable SFP footprint
- Uncooled 1550nm DFB laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 80km over 9/125 SMF
- Single power supply 3.3V
Applications
- SONET OC-48 LR-1/SDH STM L-16.1
- SONET OC-12 LR-1/SDH STM L-4.1
- SONET OC3 LR-1/SDH STM L-1.1
- 25GBd Gigabit Ethernet
- 125GBd / 1.08GBd Fiber Channel
Compliance
- ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Compatible Manufacturers
GigaTech Products has been a leading manufacturer of compatible transceivers and cables for over a decade, bringing customers affordable alternatives to Cisco, Juniper, Brocade, Dell, and HP original items. With the ability to custom code transceivers and direct attach network cables, GigaTech can provide compatible alternatives for most lesser-known brands, while ensuring 100% compatibility
Optical Transceiver Standards & Compliance
Never Sourced. Never Recycled.
All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
